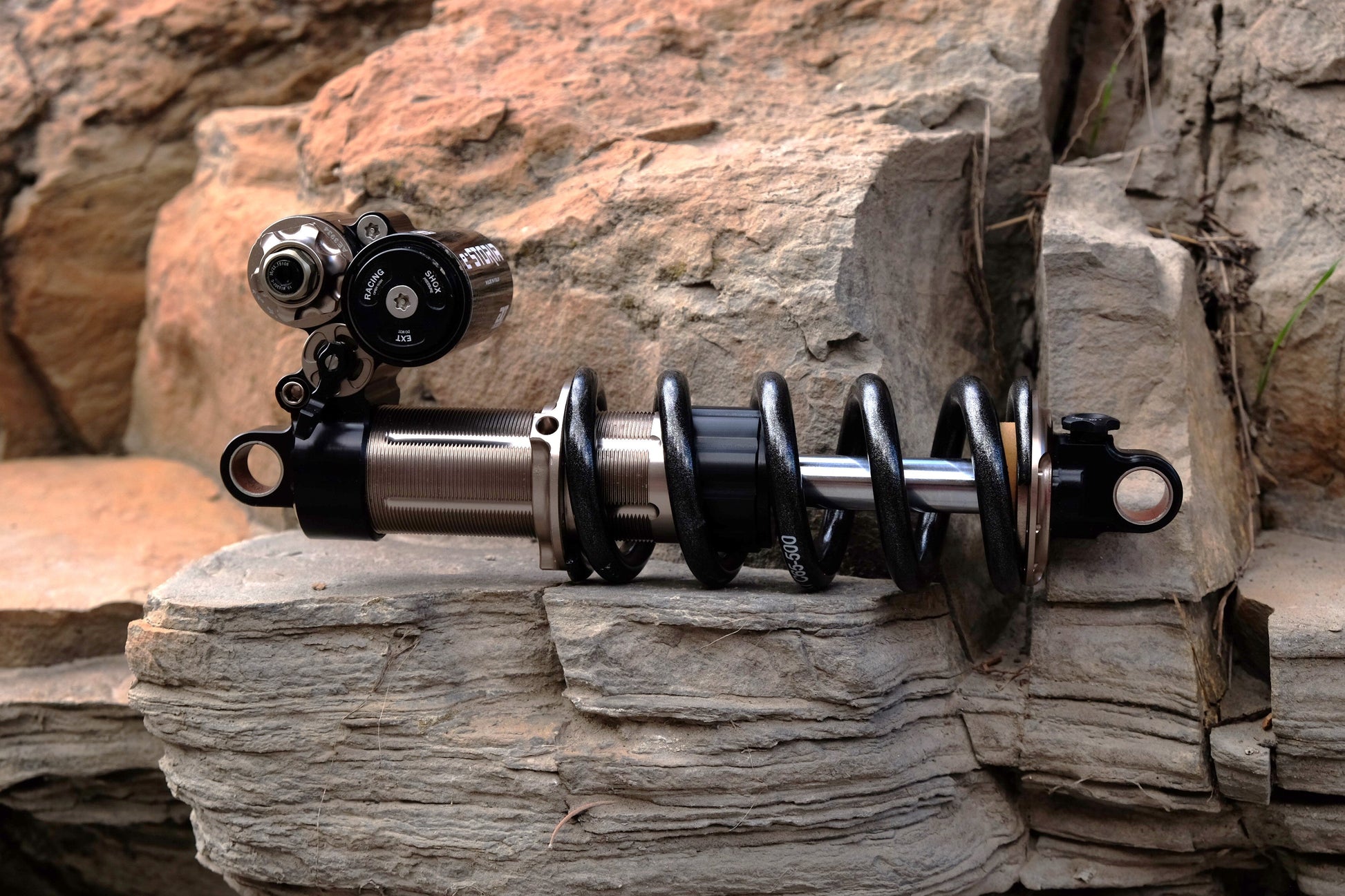

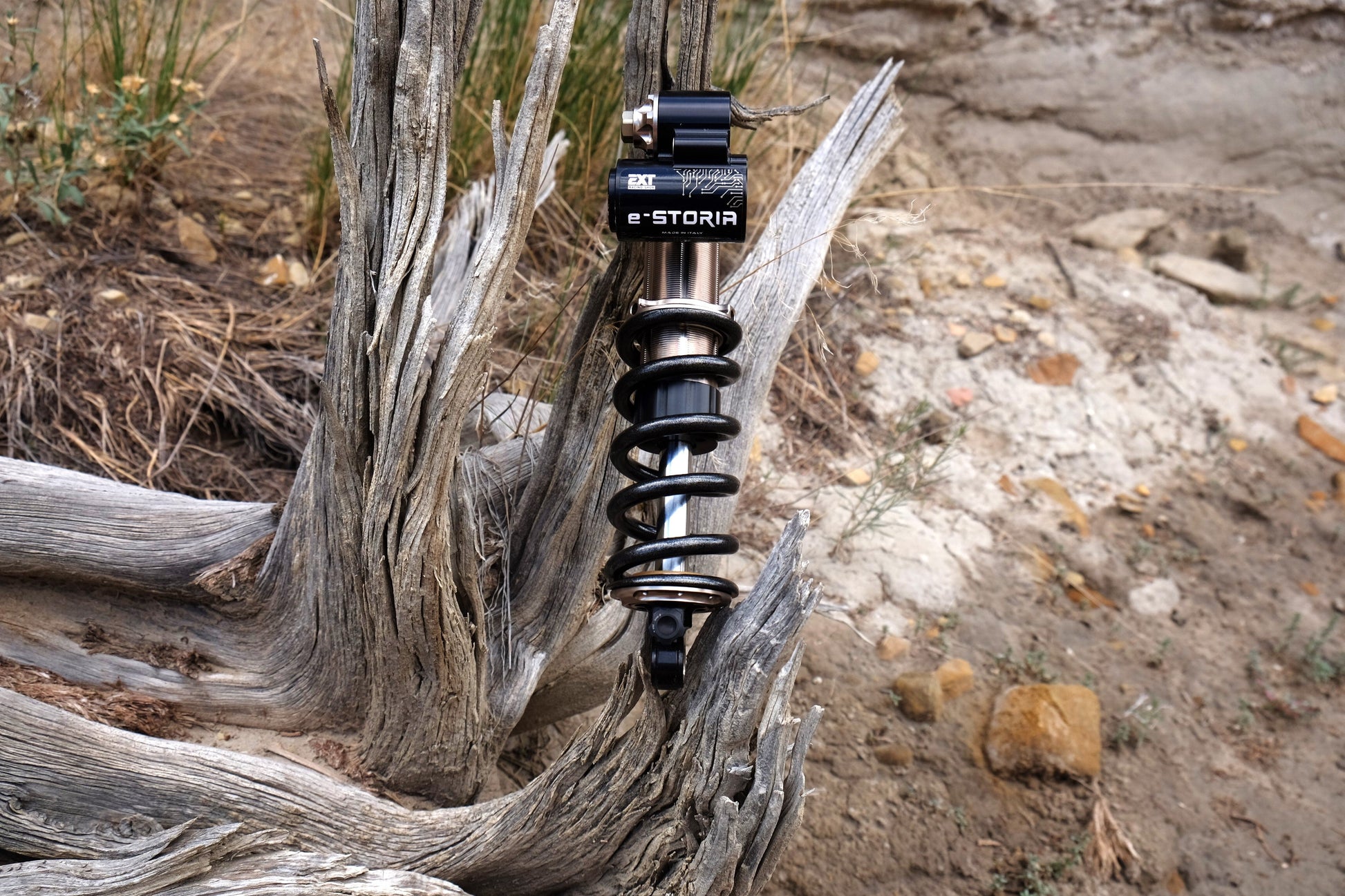

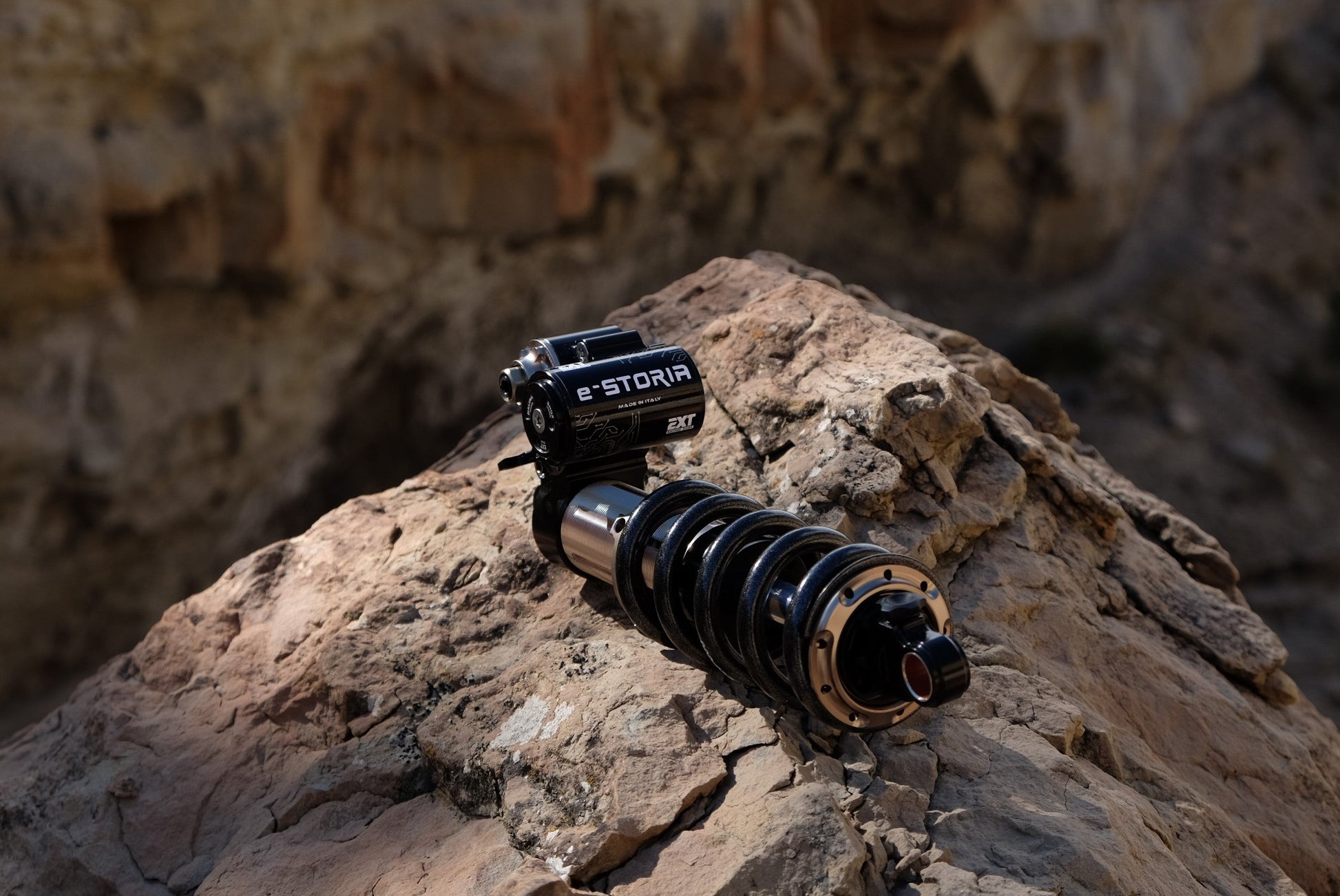

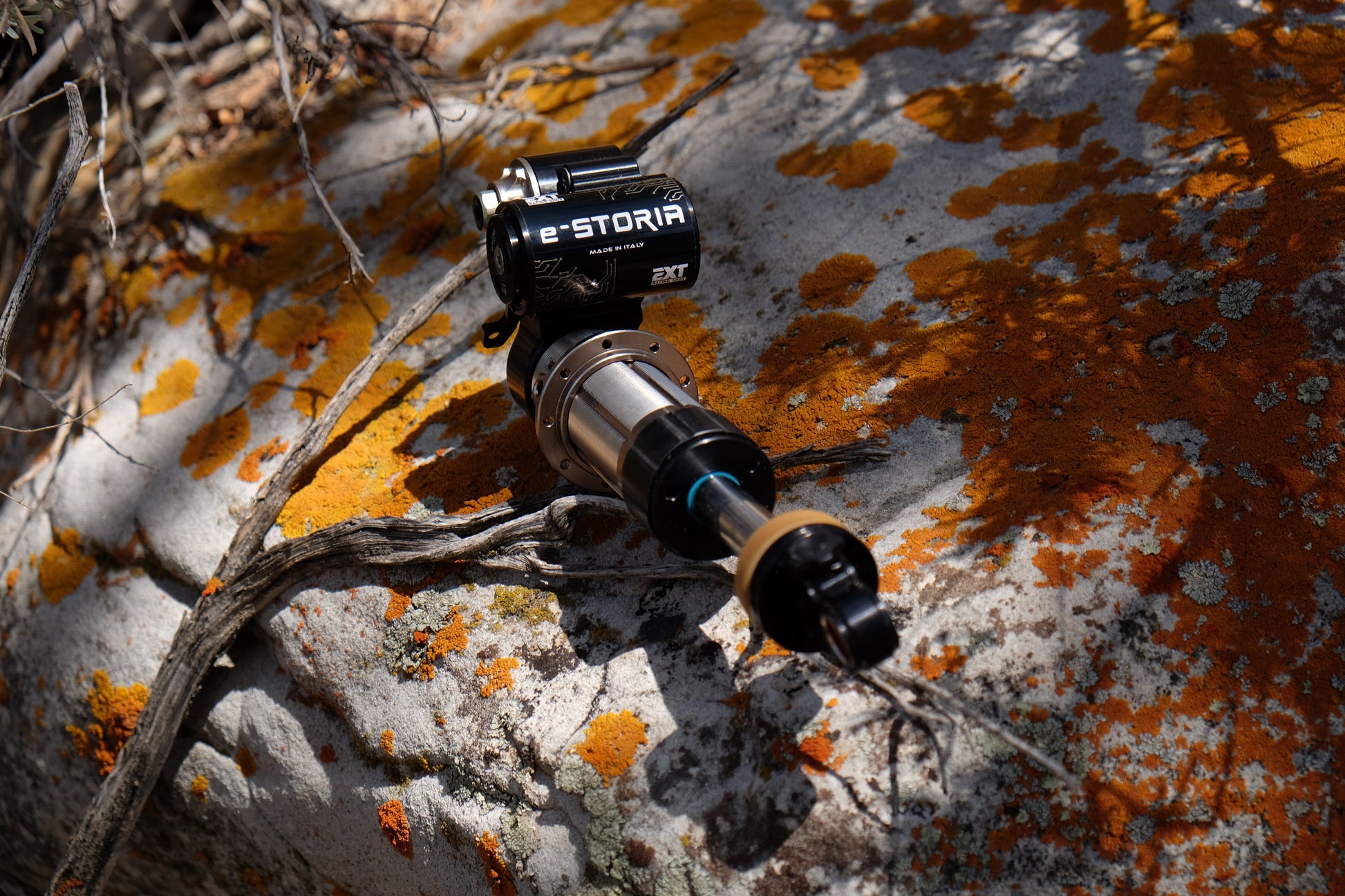

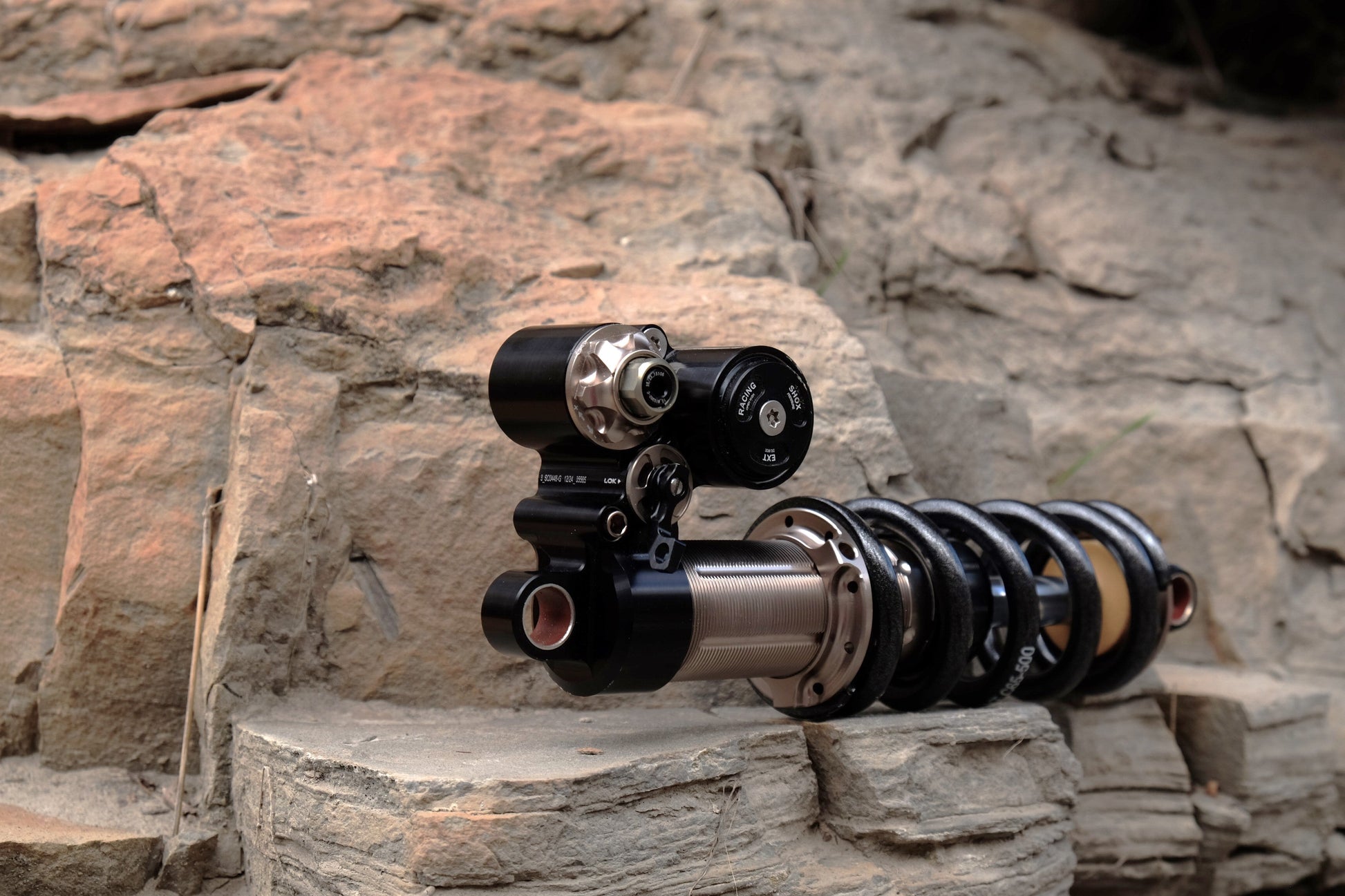

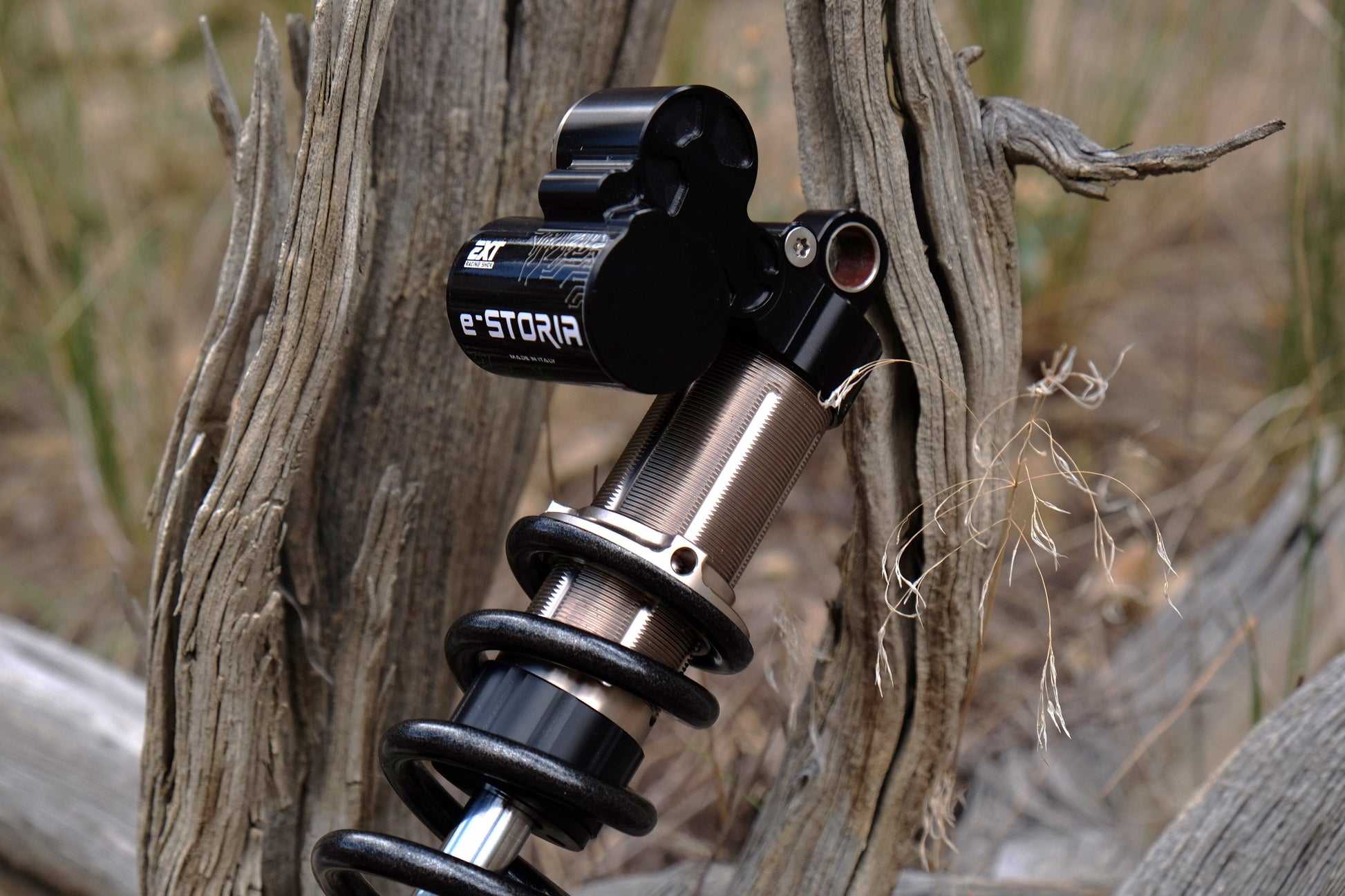

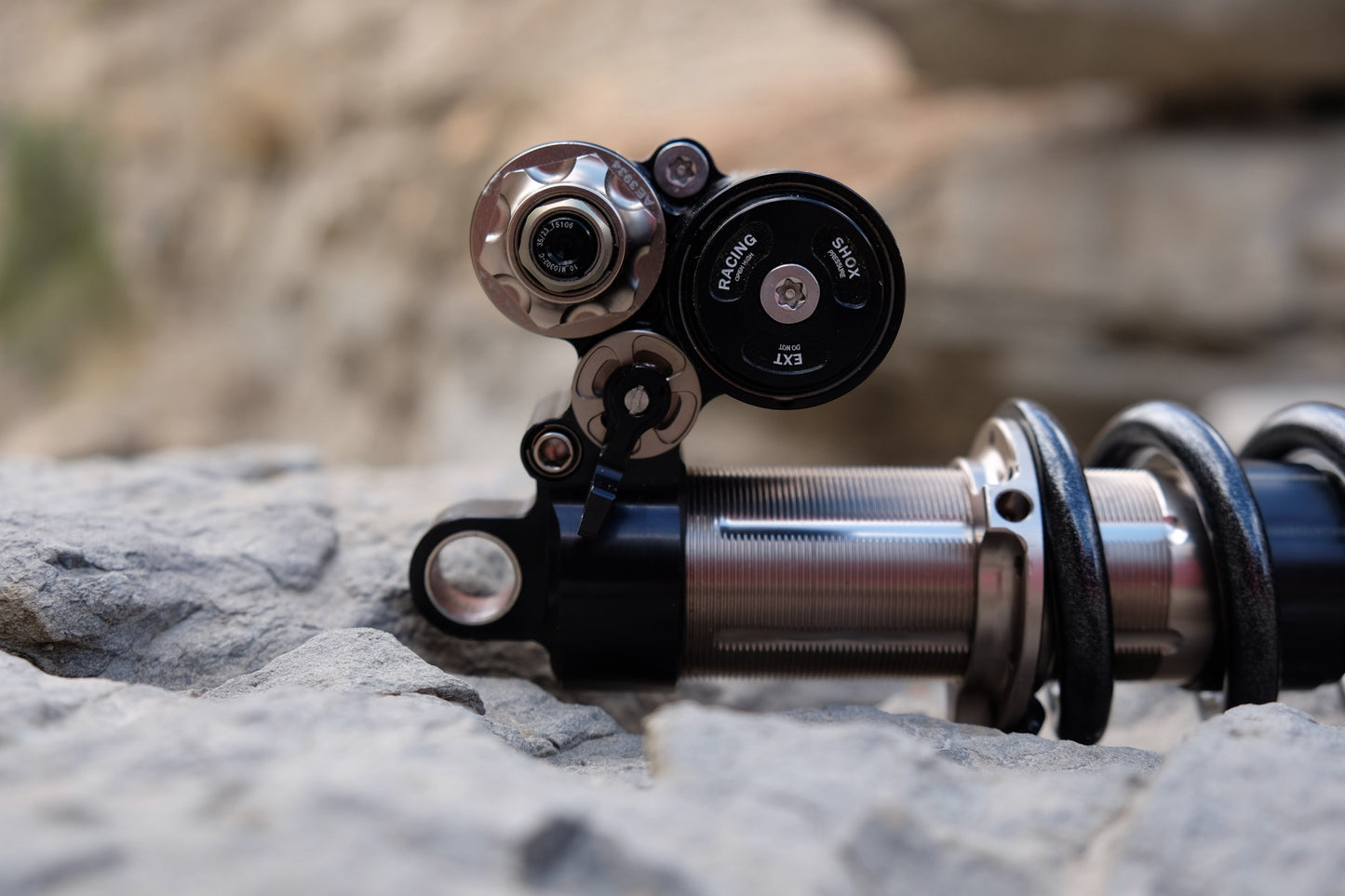

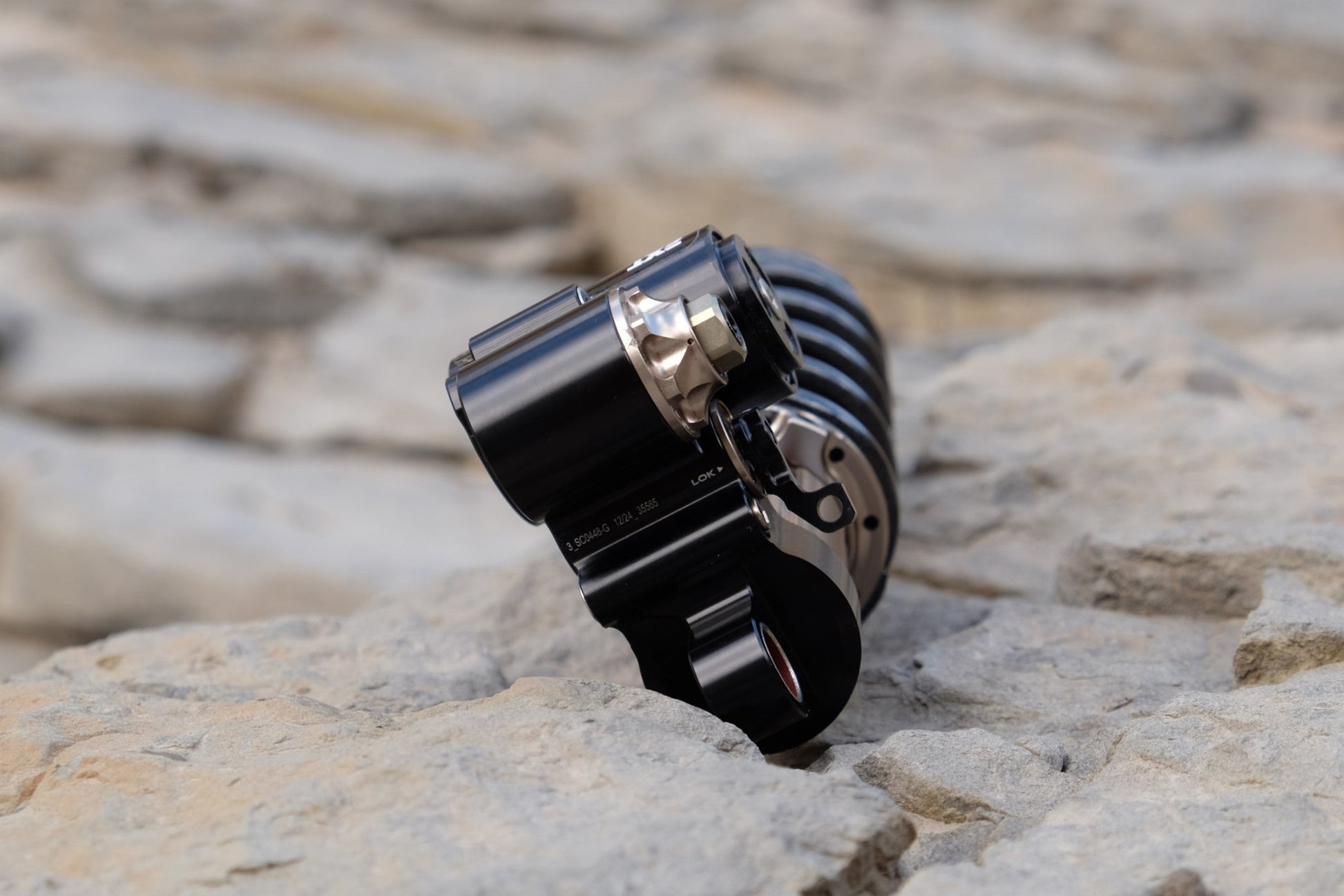

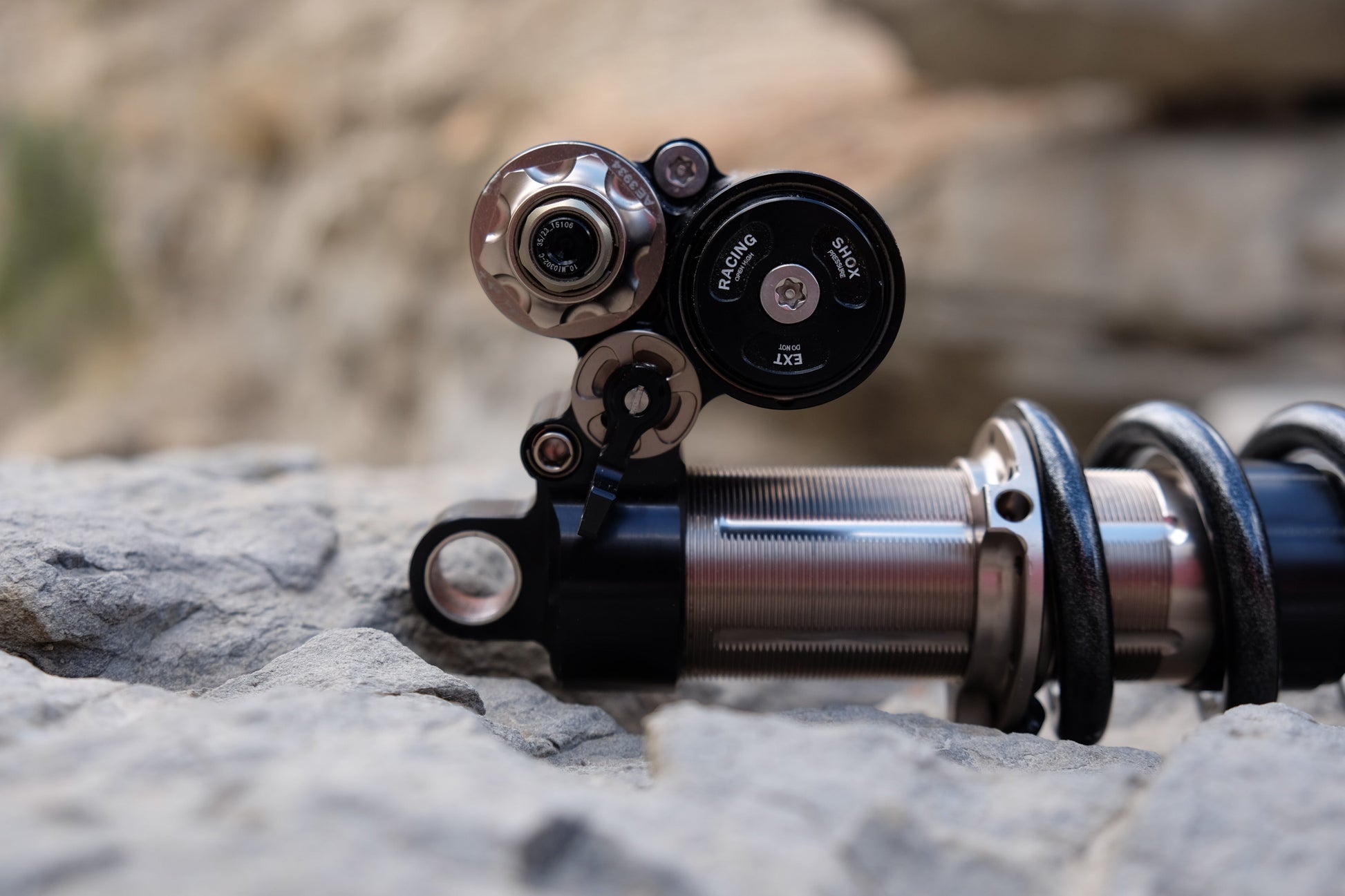

EXT e-Storia

The e-Storia features much of the same technology of the Storia V3 but in a more robust package built specifically for the stresses involved with the higher weight of e-bikes and tailored to provide ultimate control for every type of rider. While the new Storia and Arma V4 are built for best-in-class weight and performance, the e-Storia is designed with an emphasis on toughness to improve reliability when used on e-bikes or for heavier riders who require additional support. The stronger shock design can help increase the lifespan of bike chassis components as well, and increase range of tune-ability accommodating a wider range of bikes and riders. An industry “first” and an ultra-high performance suspension; it’s specifically designed for aggressive e-bike riding, super comfort level for professional riders and more in general for all the enthusiasts.

e-Storia includes the following features:

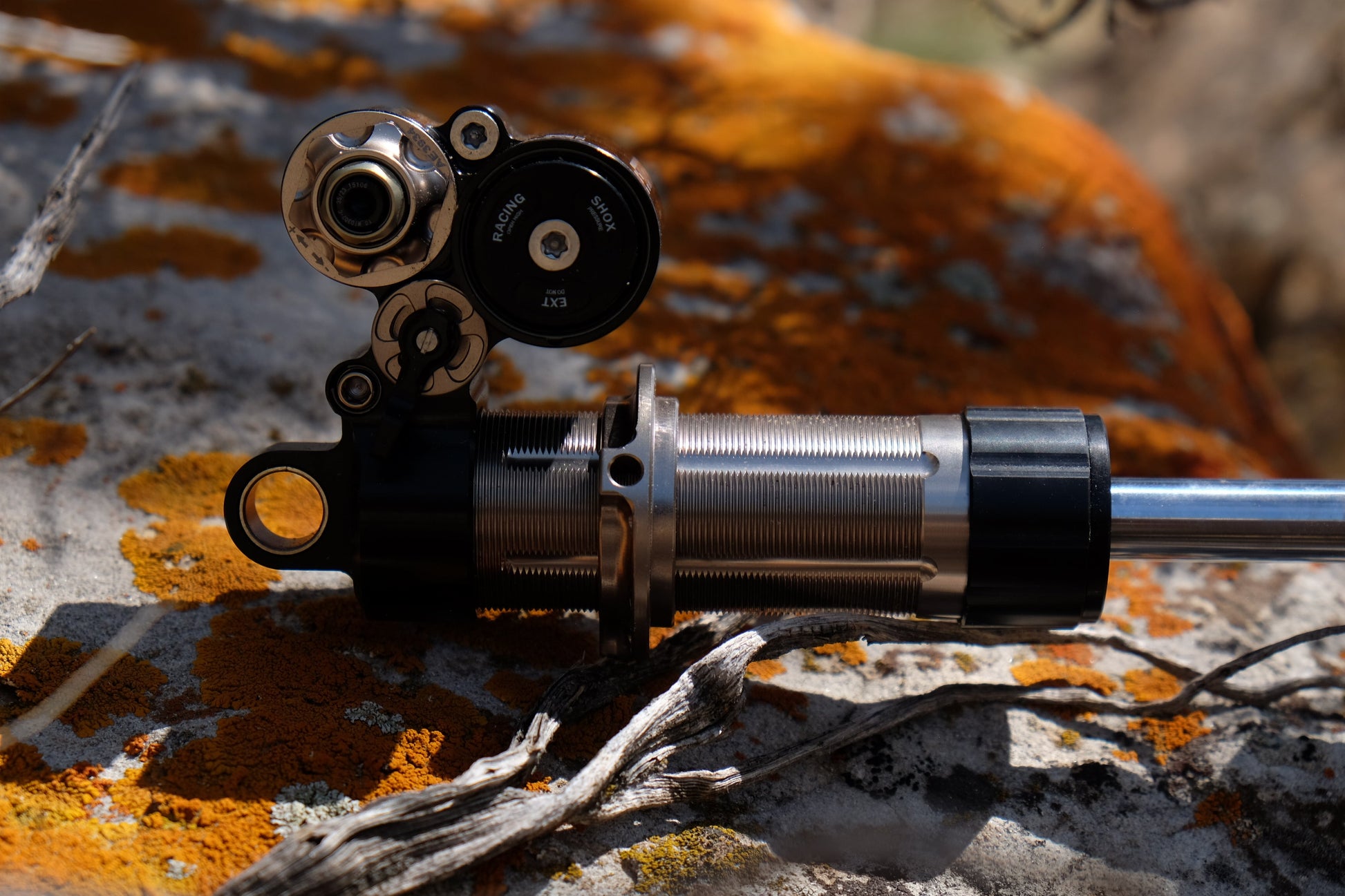

• Integrated reservoir head design to increase eyelet/trunnion mount fitment
• Stronger body construction
• Chromoly shaft with low friction coating
• Reservoir with large volume bladder design
• Dedicated spring platform to accommodate stiffer springs
• Internal negative spring to avoid harsh top-out and improve bike platform stability
• Lok 2.0
• New rebound adjustment to increase tuning range
• New compression valve design to increase adjustability range and provide more supple low speed characteristics.
• Low hysteresis to improve dynamic response
• Completely independent compression/rebound adjustment
• New check valve with low inertia to control damping even at really high frequency
• New externally adjustable HBC and more efficient design to increase bottom out protection
• New seal design to reduce friction
• New main piston design with high flow to improve sensitivity and tunability
• All valves with turbulent flow to assure consistent damping with different temperature and under extreme use/conditions
• A new high viscosity index oil for longer consistent riding in all different situations and seasons
• Springs available up to 800lb

• Weight 460g (Metric 210x55 without spring)

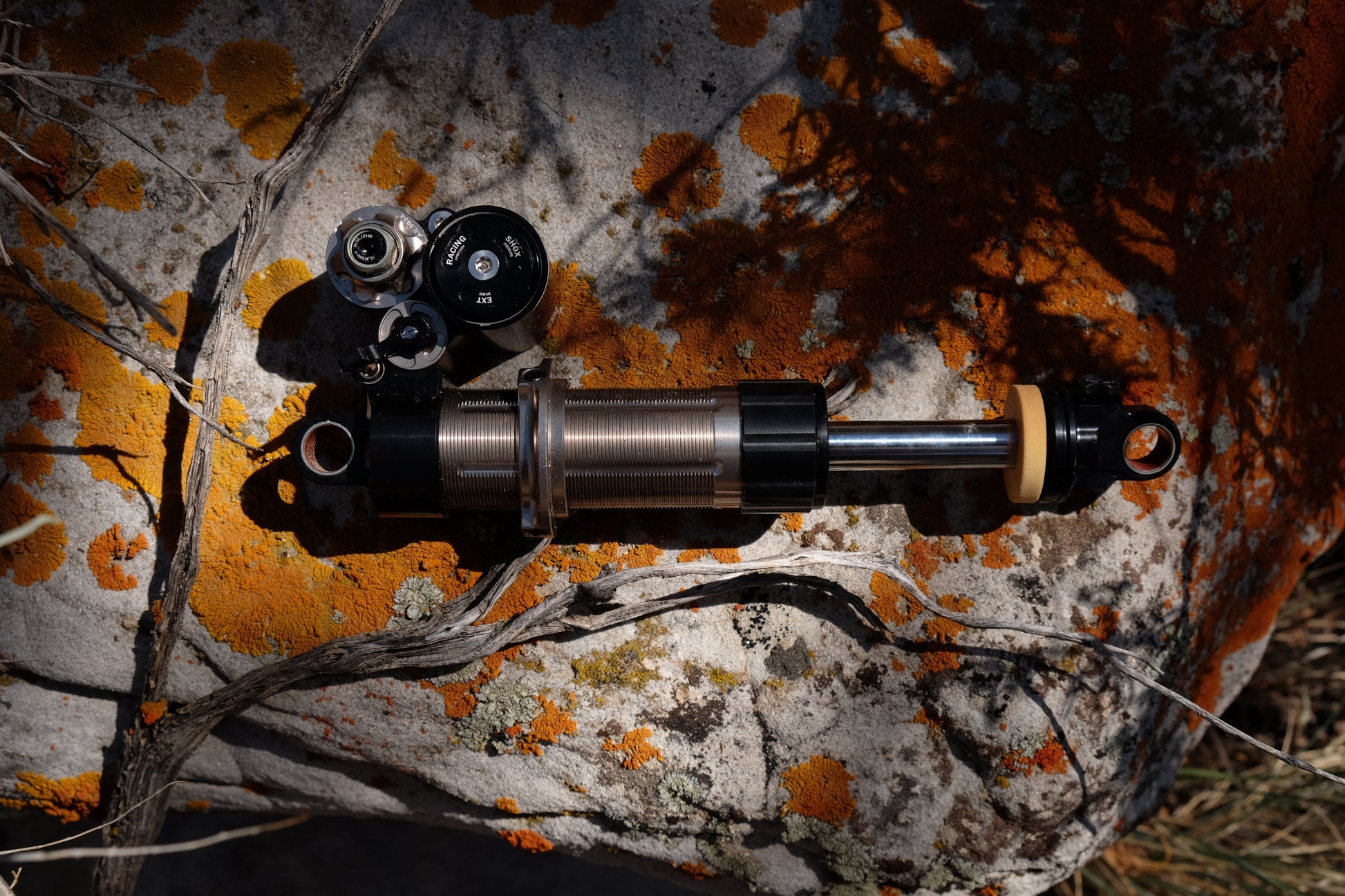

• Price is for damper only.

NOTE: Orders Requiring an HD spring (650lb+) will ship with one spring only. However, an additional HD spring may be purchased for $50.

AFMLOW RIDERS: Due to the tight frame clearance on Amflow PL frames, we are recommending a maximum rider weight of 230lbs. To ensure frame clearance, riders over a 170lb will most likely require and be shipped with a C55 spring-size. C55 spring rates max out at 650lbs rate, which calculates to a 230lb rider weight. If you are over the recommended maximum rider weight, your spring may touch your frame under full compression.
